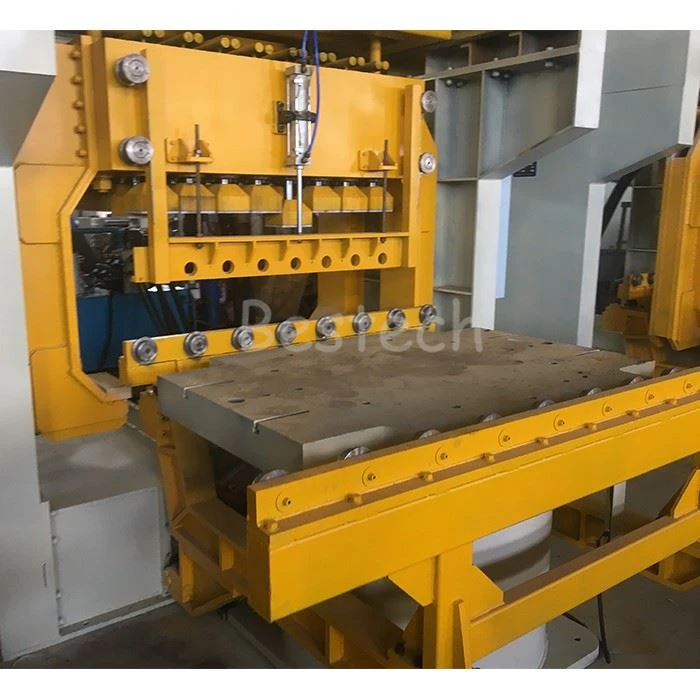

ZD Multi-contact sand molding machine belongs to a semi-automatic molding machine.Is through a number of hydraulic cylinder thrust compaction sand sand in the sand box, so that the sand get uniform uniform strength requirements, the use of jacking rod jacking sand box, to achieve the effect of the mold.
The main structure of the equipment adopts 18-25mm iron plate welded structure, and the internal stress of the welding is removed by heat treatment, and then processed by the milling machine and bolted to form a one-piece structure. The upper part of the fuselage is equipped with a contact and a traveling mechanism, and the lower part is connected with a micro-shock cylinder and a flat shaft for pulling the mold, and all the air lines and control elements are fixedly installed in the whole body. A well-designed, high-strength, high-precision fuselage structure is the basis for the durability and ease of use of a mechanical device.
|
Multi-contact sand molding machine |
|||
|
Model |
ZD1009 |
ZD1210 |
ZD1310 |
|
Sand flask inner size(mm) |
900*800 |
1200*1000 |
1300*1000 |
|
Worktable size(mm) |
1100*900 |
1450*1070 |
1550*1170 |
|
Compaction pressure(kg/cm2) |
10 |
10 |
10 |
|
Working method |
Hydraulic |
||
|
We can design and produce different sizes according to customers' requirement. |
|||
Inquiry with worktable dimension or sand box dimension,we will provide you with best solutions!
