The main difficulty of the induction frequency furnace dust collector lies in the design of the dust cover and the selection of air volume. Our company designs the dust cover as a rotating cover, and determines the size of the cover and the distance from the furnace mouth according to the user's mixing condition. Our company has a good understanding of the intermediate frequency of 0.5T-20T and above 20T
The main difficulty of the intermediate frequency furnace dust collector lies in the design of the dust cover and the selection of the air volume. Our company designs the dust cover as a rotating cover, and determines the size of the cover and the distance from the furnace mouth according to the user's mixing condition. Our company has been very mature in the dust removal technology of the intermediate frequency furnace from 0.5T-20T and above 20T, and there are many successful cases.

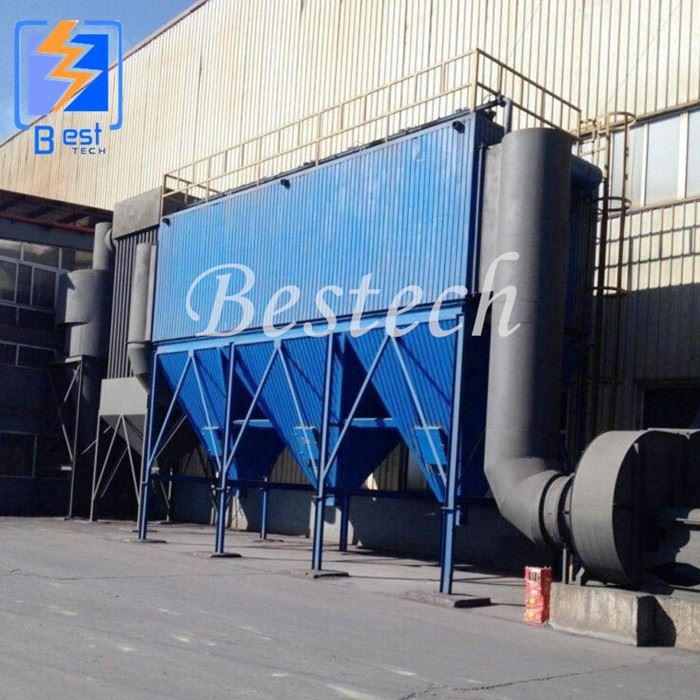

Intermediate frequency furnace dust collector is one of the processing equipment in metallurgical industry, which will produce a lot of flue gas during smelting, feeding and iron discharge, especially serious flue gas during smelting.
According to the operation technology of intermediate frequency furnace, it is an economical, reasonable and feasible scheme to select the top suction rotating hood to deal with the flue gas produced in the smelting process of intermediate frequency furnace.
Intermediate frequency furnace dust removal equipment features:
1. Dust collection hood is selected to collect dust, with no dead corner and good ash cleaning effect;
2. Select the feeding equipment to solve the problem of difficult to capture the flue gas during feeding;
3. Different structure combinations can be designed according to user requirements to achieve dust removal effect;
Structural features:
The flue gas collecting system of intermediate frequency furnace is composed of low-level mobile dust collecting hood, charging equipment, steel discharging equipment and dust removal equipment.
The low mobile dust collector covers the operation platform and the outlet pit, so that the smelting and production process of intermediate frequency furnace is carried out in the low mobile dust collector, realizing the whole process of flue gas capture.
When feeding, feeding equipment is used to fill the material several times according to the production needs, which solves the problem of difficult to catch the flue gas during feeding.
When the steel comes out, the intermediate frequency furnace platform turns over and directly goes out into the ladle on the flat car on the steel track, and the steel comes out in the smoke hood, which overcomes the situation of partial leakage of the smoke when the local dust hood comes out.
Type | Flow rate m3/h | Filter area m2 | Filter speed m/min | Cleaning efficiency | emissions mg/m3 |
DMC60 | 4320~7560 | 60 | 1.2~2.1 | 95% | ≤30-50 |
DMC80 | 5760~10080 | 80 | 1.2~2.1 | 95% | ≤30-50 |
DMC100 | 7200~12600 | 100 | 1.2~2.1 | 95% | ≤30-50 |
DMC120 | 8640~15120 | 120 | 1.2~2.1 | 95% | ≤30-50 |
DMC140 | 10080~17640 | 140 | 1.2~2.1 | 95% | ≤30-50 |
DMC160 | 11520~20160 | 160 | 1.2~2.1 | 95% | ≤30-50 |
DMC180 | 12960~22680 | 180 | 1.2~2.1 | 95% | ≤30-50 |
DMC200 | 14400~25200 | 200 | 1.2~2.1 | 95% | ≤30-50 |
DMC220 | 15840~27720 | 220 | 1.2~2.1 | 95% | ≤30-50 |
DMC240 | 17280~30240 | 240 | 1.2~2.1 | 95% | ≤30-50 |
DMC260 | 18720~32760 | 260 | 1.2~2.1 | 95% | ≤30-50 |
DMC280 | 20160~35280 | 280 | 1.2~2.1 | 95% | ≤30-50 |
1. Customized design according to the specific working conditions. To be the optimal structure design.
2. Quick delivery time and one-stop service for convenience and time saving.
3. After-sales service, video guidance, engineers can be door-to-door service.
4. Guarantee 20 years working life of bag filter equipment.
Q: Are you manufacturer or trading company?
A: We are the professional manufacturer and exporter with 20 years production experience.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Qingdao of China. Warmly welcome to visit us anytime.
Q: How do you control the quality?
A: We insist that “Quality First, Customer First”, and always pay attention to quality control from the beginning to the end. One year warranty period, ISO9001:2008, CE, Certificates.
Q: How do I pay for the product?
A: T/T, L/C, Western Union, Money Gram,Credit Card are available.
Q: How long is the delivery time?
A: About 10-40 days upon the payment date.
Q: How about the after-sale installation of dust collector?
A: Our products are modelized. You can easily assemble them with our instrustions. We provide installation manual, technical consulting forever. Our engineers are available to help you install dust collector online. We also can provide installing turn-key projects overseas.
