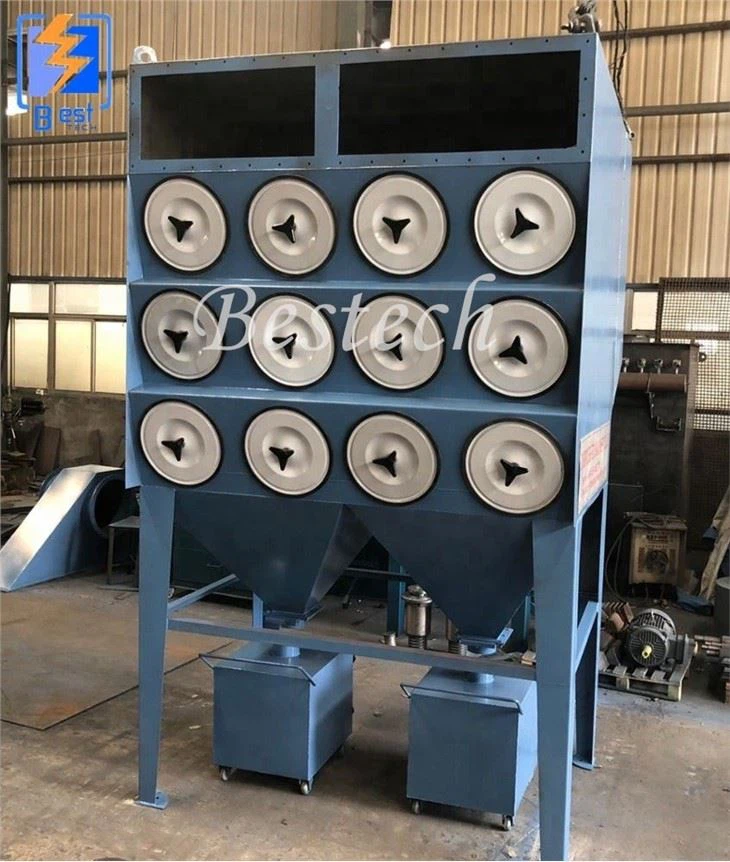

Laser Cutting Dust Collectors: Safeguarding Precision and Air Quality
Introduction
Laser cutting dust collectors are critical systems designed to capture hazardous fumes, fine particulates, and metal vapors generated during laser cutting processes. These systems protect operator health, prevent equipment damage, and ensure compliance with workplace safety standards (e.g., OSHA, ISO 21904). By maintaining clean air in manufacturing facilities, they optimize laser cutting precision and longevity while reducing environmental impact. Widely used in automotive, aerospace, and sheet metal fabrication industries, modern dust collectors combine advanced filtration, smart controls, and energy-efficient designs.
Working Principle
Laser cutting dust collectors operate through a multi-stage filtration process:
Capture: A high-velocity airflow system extracts smoke and dust directly from the laser cutting head or enclosure.
Primary Filtration:
Cyclonic Pre-separation: Removes larger particles (≥10 µm) via centrifugal force.
Spark Arrestors: Prevent ignition risks from hot metal debris.
Secondary Filtration:
Cartridge Filters: HEPA or PTFE-coated media capture ultrafine particles (0.3–5 µm) with 99.97% efficiency.
Carbon Filters: Adsorb toxic fumes (e.g., VOCs, ozone) from cutting plastics or coated metals.
Exhaust: Cleaned air is recirculated indoors or safely expelled outdoors.
Key Components
Extraction Hood/Enclosure:
Adjustable arms or sealed chambers to capture emissions at the source.
Filter Media:
Nanofiber Cartridges: Low resistance, high dust-holding capacity.
Fire-Retardant Materials: Critical for cutting flammable alloys (e.g., magnesium).
Fan System:
Variable-speed centrifugal fans (1,000–10,000 CFM) for precise airflow control.
Dust Disposal:
Automatic pulse-jet cleaning to dislodge accumulated dust into collection bins.
Monitoring & Controls:
Pressure sensors, airflow meters, and IoT-enabled dashboards for real-time performance tracking.
| type | number of cartridge | filtering area(m²) | air volume(m3/h) | cartridge specification |
velocity of filtering (m/min) |
| GHR2-8 | 8 | 80 | 3800 | (365-290)*660 | 0.7-1m/min |
| GHR3-12 | 12 | 120 | 5800 | ||
| GHR3-24 | 24 | 240 | 11500 | ||
| GHR4-32 | 32 | 320 | 15400 | ||
| GHR4-48 | 48 | 480 | 23000 | ||
| GHR4-64 | 64 | 640 | 30700 | ||
| GHR4-80 | 80 | 800 | 38400 | ||
| GHR4-96 | 96 | 960 | 46100 | ||
| GHR4-112 | 112 | 1120 | 53800 | ||
| GHR4-128 | 128 | 1280 | 61400 |
1. Advisory support
2. Technical solutions and quotations
3. Visit the customer's factory and negotiate.
4. Customers visit our factory and check the production.
Q: Are you manufacturer or trading company?
A: We are the professional manufacturer and exporter with 20 years production experience.
Q: Where is your factory located?
A: Our factory is located in Qingdao of China. Warmly welcome to visit us anytime.
Q: How do you control the quality?
A: We insist that "Quality First, Customer First", and always pay attention to quality control from the beginning to the end. One year warranty period, ISO9001:2008, CE, Certificates.
Q: How do I pay for the product?
A: T/T, L/C, Western Union, Money Gram,Credit Card are available.
Q: How long is the delivery time?
A: About 10-40 days upon the payment date.
Q: How about the after-sale installation of dust collector?
A: Our products are modelized. You can easily assemble them with our instrustions. We provide installation manual, technical consulting forever. Our engineers are available to help you install dust collector online. We also can provide installing turn-key projects overseas.
Inquiry with the following information,we will provide you with best solutions!
1.Air volume
2.Filtering area
3.Max temperature
