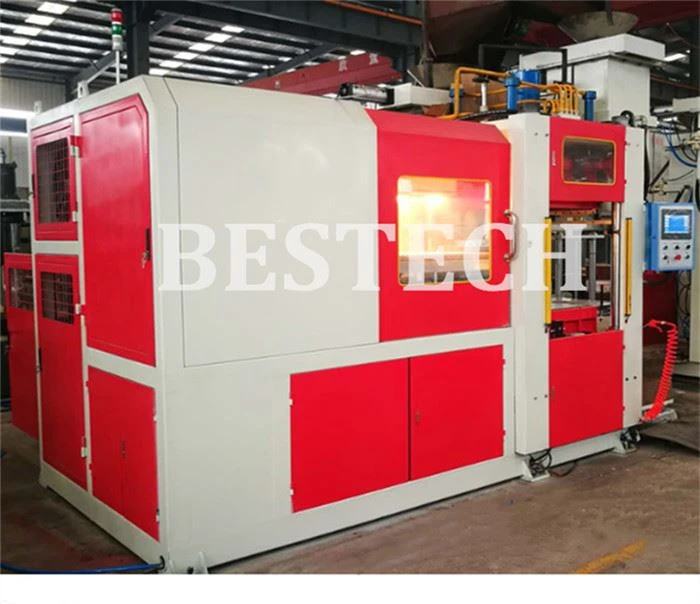

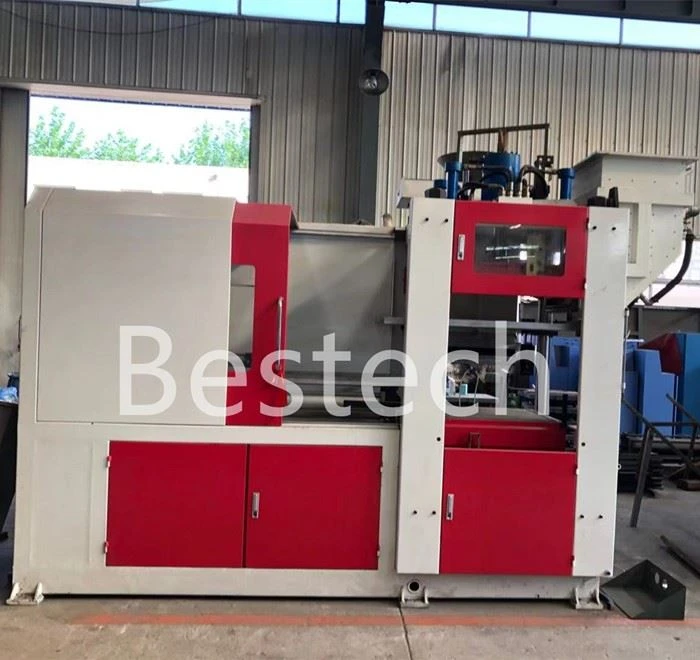

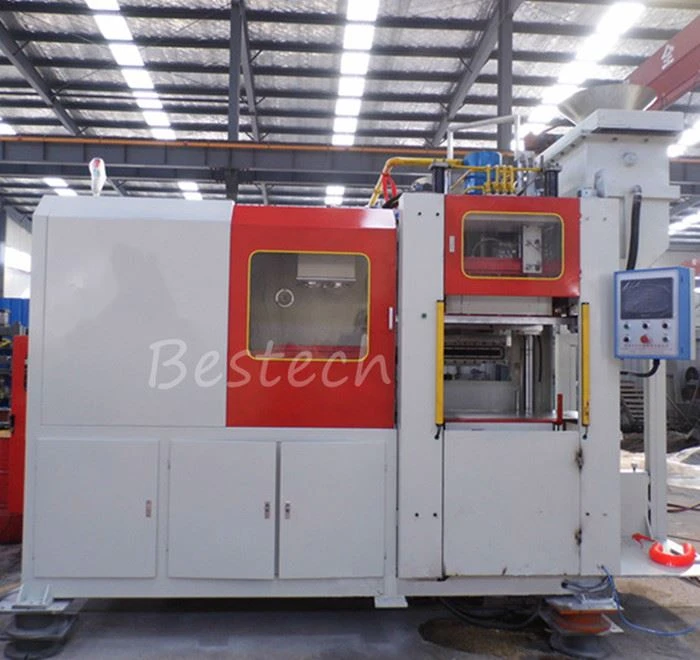

Automatic Sand Molding Machine Description
The XGA Automatic Molding Machine is designed as the first step from switching from manual molding to automatic molding without compromising quality. This compact design allows a foundry to replace their existing manual molding line within one day. The design of the XGA Automatic Sand Molding Machine does not require a pit. The XGA automatic molding machine installation is a simple process of connecting to a 110-volt power supply and system air pressure of 80- psi. The XGA molding machine utilizes an Air over Oil compressed air system instead of the traditional hydraulic system. The Air over Oil system allows the XGA’s Automatic Sand molding machine cylinders to generate smooth, hesitation free and consistent movement without the use of hydraulic system and pump. Aeration technology is the key design that allows for exceptional molds making. Patterns that have deep pockets and minimal draft become less challenging with Aeration technology.
AUTOMATIC MOLDING MACHINE FEATURES:
1. Accommodates any dimension pattern
2.Average Maximum Mold rate of 90 molds/hour
3.Ideal for switching from manual molding to automatic molding
4.Aeration Sand Filling Technology for producing high quality castings
5.Ready to use by connecting power, compressed air, and sand supply
6.Low Noise and Energy
7.Replace multiple jolt squeezers!
AIR OVER OIL OPERATION
When the air valve is shifted, air flows down one airline to the air/oil tank that line is connected to.
The compressed air first fills the empty space in the top of the air / oil pressure tank, and then, as air pressure builds, exerts force on the oil in that tank.
That oil then flows through the line to the cylinder port, causing the cylinder rod or carriage to extend or retract depending on which port it flows to.
The flow controls, one installed on each of the cylinder lines, will operate by restricting the flow of oil out of the cylinder, thereby dampening the flow of the oil resulting in a smooth, consistent stroking of the cylinder rod.
When the air valve is shifted in the other direction, the air flows down the other valve line to the other air / oil tank, and the cycle repeats.
Each time the valve shifts, the oil being driven into the cylinder from one tank pushes the cylinder piston towards the other end of the cylinder, and that piston drives the oil on the other side back up the line to the other air / oil tank.
A properly installed air over oil system as described will provide the cylinder stroke speed and consistency that you desire for your application.
Technical parameter | XGA-01 | XGA-02 | XGA-03 |
Sand Mould Dimension (LxWxH) | 500x400x(120~150) | 610x508x(130~180) | 700*600*(130*180) |
Moulding methord | Injection and Compaction | Injection and Compaction | Injection and compaction |
Compaction specific pressure | ~1.0Mpa | ~1.0Mpa | 1.0Mpa |
Power Mode | Hydraulic pressure | Hydraulic pressure | Hydraulic pressure |
Max productivity | 40s/mould(Excluding core setting time) | 40s/mould(Excluding core setting time) | 40s/mold (excluding core seeting time) |
Qingdao bestech machinery co.,ltd specialized in upper shooting horizontal molding machine automatic for more than 30 years and we have mature technology,all of our equipment have passed CE and ISO,welcome to contact us for more details.
what is the warranty of this upper shooting type horizontal molding machine?
1 year warranty and whole lifetime technical support
Are you real Manufacturer?
Yes ,we have our own factory,welcome to visit our factory
