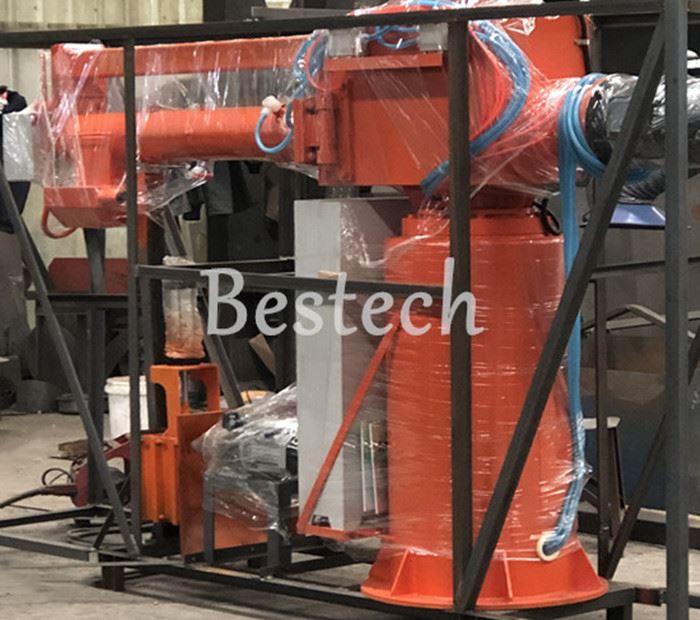

Foundry Sand Mixer Machine

S24 series single-arm foundry sand mixer machine is suitable for the mixing of self-hardening resin sand, water glass sand and other molding sand. It has the characteristics of good sand mixing quality, accurate quantification, easy cleaning and maintenance, and flexible operation.

Standard slewing mechanism, flexible operation.

The full-open sand mixing cage arm is convenient for blade adjustment, cleaning and maintenance.

The long-arm sand mixing cage increases the working area.

The new and old sand ratio adjuster can be selected according to the pre-adjusted ratio to change the heating amount of the new and old sand.

The PLC control system is fully restricted and protected, and there is basically no loss of head and tail sand.

Equipped with imported technology binder quantitative pump, high quantitative precision and reliable use.

The single-arm slewing structure is simple and the equipment investment is low.

Figure 1, according to the related model equipment foundation construction foundation, should go line pole and base built into the base under the car. Installed at the base of the center of the flange relative sand bucket out of the center of the flange of tolerance of 3 mm or less; On the plane the levelness tolerances 2 mm or less.

2, connection and installation base sand mixing machine base, adjustment of three screw nail guarantee sand mixer base plane levelness tolerances on 0.20/1000 or less, and padded with wedge iron and tighten bolts connection.

3, a connection, secondary stirring cage and base, allow only when lifting lug stirred cage.

4, install proportion regulator.

5, the connecting gas circuit system, electrical system, binder system.

Resin sand sand mixer debugging
