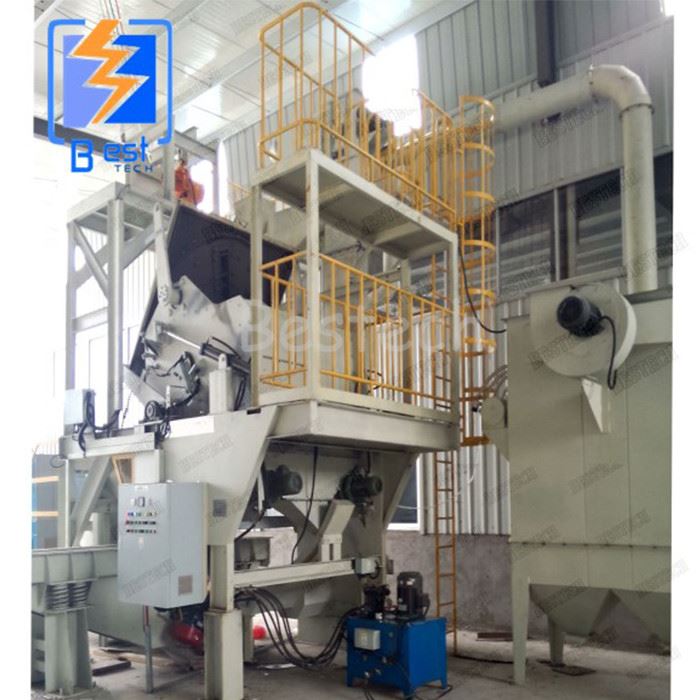

● Efficient and uniform cleaning effect The unique drum shaking structure is adopted. During shot blasting, the drum not only rotates but also shakes up and down. Therefore, the product in the drum is completely stirred. Achieve even cleaning effect.
● Thin and small special parts can also be processed. The shot blasting chamber adopts a unique structure, which can clean general castings and forgings. Even thin and small special parts can be handled without damage.
● Convenient and accurate input and discharge Because of automatic and smooth movement, the workpiece will not be knocked, can be gently and completely input, discharged, easy to operate
● Simple maintenance. The structure of the roller and the body is simple, so it can reduce the wearing parts and save the time and cost of maintenance. The unique drum shaking structure is adopted. During the shot blasting, the drum not only rotates but also shakes up and down. Therefore, the product in the drum is completely stirred. Achieve even cleaning effect.
model | QGT15 | |
processing capacity | capacity | 0.65 m3 each time |
total weight | 1200 kg each time | |
max weight of single work piece | 40 kg | |
max size of work piece | 550 mm | |
| motor power | 30 kw |
Steel shot projected quantity | 480 kg/min | |
machine dimension | width | 3745mm |
length | 5415mm | |
height | 7103mm | |
discharge height | 1350mm | |
dust collector | Casting remove sand | 75 m3/min |
descale | 50 m3/min | |
