As a reputable supplier of Hook Type Shot Blasting Machines, I understand that the installation process is a critical step that can significantly impact the machine's performance and longevity. In this blog post, I'll guide you through the entire installation process of a Hook Type Shot Blasting Machine, providing you with detailed steps and valuable tips to ensure a successful setup.
Pre - installation Preparations
Site Selection
The first step in installing a Hook Type Shot Blasting Machine is to choose an appropriate site. The site should be spacious enough to accommodate the machine and allow for easy access for maintenance and operation. It should also have a flat and stable floor to prevent any vibrations during the machine's operation. Additionally, ensure that the site has proper ventilation to exhaust the dust and fumes generated during the shot - blasting process.
Inspection of the Machine
Before starting the installation, carefully inspect the Hook Type Shot Blasting Machine. Check for any visible damage during transportation, such as scratches, dents, or loose parts. Make sure that all the components are included in the shipment, such as the hook system, blasting turbines, dust collector, and control panel. If you find any issues, contact our customer support team immediately.
Gathering Tools and Equipment
Prepare all the necessary tools and equipment for the installation. This may include wrenches, screwdrivers, lifting equipment (such as cranes or forklifts), measuring tools (like a level and tape measure), and safety gear (including helmets, gloves, and safety glasses). Having all the tools ready will streamline the installation process and prevent unnecessary delays.
Installation Steps
Foundation Installation
The foundation is the base of the Hook Type Shot Blasting Machine, and it must be installed correctly. First, mark the location of the foundation on the floor according to the machine's dimensions. Then, pour the concrete foundation. Make sure the foundation is level and has the correct thickness and strength as specified in the machine's manual. After the concrete has cured, install the anchor bolts in the foundation. These bolts will be used to secure the machine to the foundation.
Machine Assembly
- Hook System Installation: Start by installing the hook system. Use the lifting equipment to carefully place the hook on its designated position. Align the hook with the guide rails and secure it using the appropriate bolts. Check that the hook can move smoothly along the rails without any obstructions.
- Blasting Turbines Installation: Mount the blasting turbines onto the machine. Ensure that they are properly aligned and tightened. The turbines are the heart of the shot - blasting process, so their correct installation is crucial for efficient operation. Connect the turbines to the power supply and check for any electrical connections.
- Dust Collector Installation: Install the dust collector near the shot - blasting machine. Connect the dust collection pipes from the machine to the dust collector. Make sure the connections are air - tight to prevent dust leakage. The dust collector plays a vital role in maintaining a clean working environment and protecting the health of the operators.
- Control Panel Installation: Install the control panel in a convenient location where the operator can easily access it. Connect all the electrical wires from the machine components to the control panel. Double - check the wiring to ensure that there are no short circuits or loose connections.
Connection of Auxiliary Systems
- Shot Supply System: Connect the shot supply system to the blasting turbines. This system is responsible for delivering the shots to the turbines for the blasting process. Ensure that the shot hopper is properly filled and that the conveyor belts or pipes are in good working condition.
- Exhaust System: Connect the exhaust system to the dust collector and the shot - blasting chamber. The exhaust system helps to remove the dust and fumes generated during the shot - blasting process. Make sure that the exhaust pipes are properly sealed and that the fans are working efficiently.
Post - installation Checks
Mechanical Checks
After the installation is complete, perform a series of mechanical checks. Check the movement of the hook system. Make sure it can rotate and move along the rails smoothly. Inspect the blasting turbines for any abnormal noises or vibrations. Check the belts and chains for proper tension and alignment.
Electrical Checks
Test all the electrical components of the Hook Type Shot Blasting Machine. Turn on the power supply and check if the control panel is functioning correctly. Test all the switches and buttons to ensure that they can control the machine's operations accurately. Check for any electrical faults or short circuits.
Blasting Performance Test
Before putting the machine into full - scale production, conduct a blasting performance test. Load some test workpieces onto the hook and start the shot - blasting process. Observe the blasting effect on the workpieces. Check if the shots are hitting the workpieces evenly and if the dust collection system is working effectively. Adjust the blasting parameters, such as the turbine speed and the shot flow rate, if necessary.
Different Types of Hook Type Shot Blasting Machines
There are several types of Hook Type Shot Blasting Machines available, each with its own features and applications.
Continuous Shot Blasting Machine
The Continuous Shot Blasting Machine is designed for high - volume production. It can continuously load and unload workpieces, which significantly improves the production efficiency. This type of machine is suitable for industries that require a large number of workpieces to be shot - blasted, such as the automotive and aerospace industries.

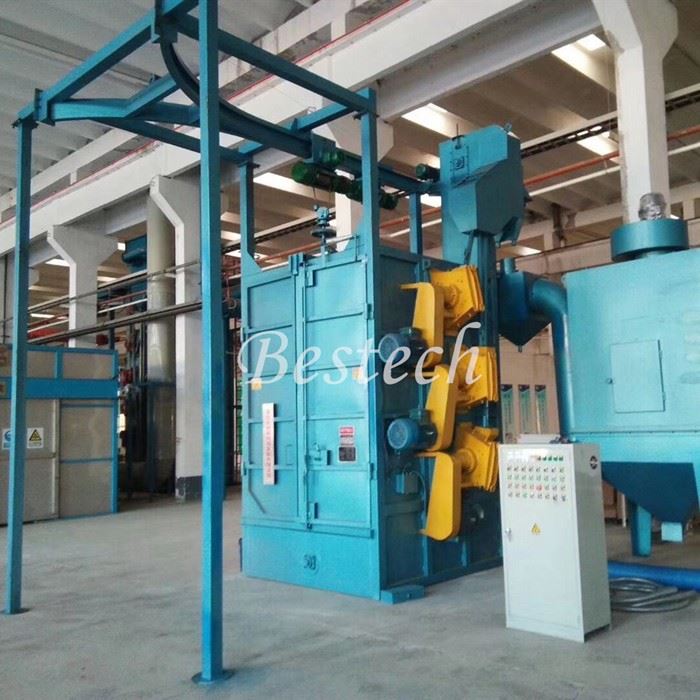

Spinner Hanger Shot Blasting Machine
The Spinner Hanger Shot Blasting Machine is equipped with a spinner hanger that can rotate the workpieces during the shot - blasting process. This ensures that all surfaces of the workpieces are evenly blasted. It is ideal for small to medium - sized workpieces with complex shapes.
Double Hook Shot Blasting Machine
The Double Hook Shot Blasting Machine has two hooks, which allows for simultaneous loading and unloading of workpieces. This reduces the idle time of the machine and increases the productivity. It is suitable for applications where a continuous flow of workpieces needs to be processed.
Conclusion
Installing a Hook Type Shot Blasting Machine requires careful planning, proper tools, and strict adherence to the installation steps. By following the guidelines provided in this blog post, you can ensure a successful installation and optimal performance of the machine. If you have any questions or need further assistance during the installation process, our professional technical support team is always ready to help.
If you are interested in purchasing a Hook Type Shot Blasting Machine or have any inquiries about our products, please feel free to contact us for procurement discussions. We are committed to providing you with high - quality machines and excellent after - sales service.
