Hey there! As a supplier of Hot Type Core Shooting Machines, I've been getting a lot of questions about core uniformity control. So, I thought I'd break it down for you in this blog post.
First off, let's talk about what a Hot Type Core Shooting Machine is. It's a key piece of equipment in the foundry industry. This machine is used to create cores, which are essential for making complex metal castings. The cores are made by shooting a mixture of sand and resin into a heated mold. Once the mixture is in the mold, the heat cures the resin, hardening the sand into the desired core shape.
Now, onto the core uniformity control. Core uniformity is super important. When the cores have consistent density, size, and shape, it leads to high - quality castings. If the cores are not uniform, it can cause all sorts of problems in the casting process. For example, uneven cores might result in casting defects like porosity, misruns, or dimensional inaccuracies.
There are several factors that affect core uniformity in a Hot Type Core Shooting Machine, and we need to control them carefully.
1. Sand - Resin Mixture
The first thing to consider is the sand - resin mixture. The ratio of sand to resin is crucial. If there's too much resin, the mixture can be too sticky, and it might not flow evenly into the mold. On the other hand, if there's too little resin, the core won't have enough strength. We usually follow a specific formula based on the type of casting we're making and the requirements of the customer.
We also need to make sure that the sand is of good quality. It should have a consistent grain size and shape. Irregular sand grains can lead to uneven packing in the mold, which affects the core's uniformity. Before using the sand, we test it to ensure it meets our standards.
2. Shooting Pressure
The shooting pressure is another important factor. When we shoot the sand - resin mixture into the mold, the pressure needs to be just right. If the pressure is too low, the mixture might not fill the entire mold, leaving some parts of the core incomplete. If the pressure is too high, it can cause the mixture to compact unevenly, resulting in a core with inconsistent density.
We use advanced pressure sensors in our Hot Type Core Shooting Machines to monitor and control the shooting pressure. These sensors give us real - time data, allowing us to make adjustments as needed. For example, if the pressure starts to drop during the shooting process, the machine can automatically increase it to ensure a proper fill.
3. Mold Temperature
The temperature of the mold plays a big role in core uniformity. The heat from the mold is what cures the resin in the sand - resin mixture. If the mold temperature is not uniform, different parts of the core will cure at different rates. This can lead to a core with varying hardness and density.
To control the mold temperature, we use heating elements that are evenly distributed around the mold. We also have temperature sensors to monitor the temperature at different points. This way, we can make sure that the entire mold is at the right temperature for consistent core curing. For instance, if one part of the mold is getting too hot, we can adjust the heating settings to balance it out.
4. Shooting Time
The shooting time is also critical. It determines how much of the sand - resin mixture is shot into the mold. If the shooting time is too short, the core will be under - filled. If it's too long, there might be an over - filling, which can cause problems like flash or a distorted core shape.
We've calibrated our machines to have precise shooting times. Based on the size and complexity of the core, we set the appropriate shooting time. For simple cores, the shooting time might be shorter, while more complex cores require a longer shooting time to ensure a complete fill.
5. Machine Maintenance
Regular machine maintenance is essential for core uniformity control. Over time, parts of the Hot Type Core Shooting Machine can wear out. For example, the shooting nozzles can get clogged or worn, which can affect the flow of the sand - resin mixture. If the nozzles are not working properly, the mixture might not be distributed evenly in the mold.
We recommend a strict maintenance schedule for our machines. This includes cleaning the nozzles regularly, checking the seals for leaks, and lubricating the moving parts. By keeping the machine in good condition, we can ensure that it operates consistently, leading to uniform cores.
At our company, we've put a lot of effort into developing Hot Type Core Shooting Machines that can achieve excellent core uniformity control. Our machines are equipped with the latest technology to monitor and adjust all these factors automatically.

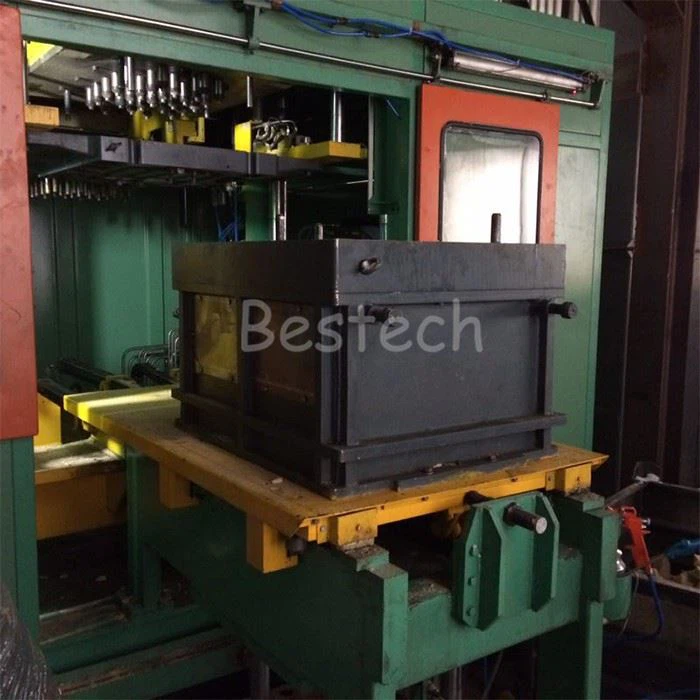

If you're in the market for a reliable Hot Type Core Shooting Machine, you might also be interested in other related products. Check out our Core molding systems, Foundry Shell Core Shooter Machine, and Cold Box Core Shooter Machine. These systems offer different features and benefits, depending on your specific needs.
If you have any questions about core uniformity control or our Hot Type Core Shooting Machines, feel free to reach out. We're always happy to have a chat and help you find the best solution for your foundry operations. Whether you're a small - scale foundry or a large industrial operation, we can provide you with the right equipment and support. Contact us today to start a discussion about your requirements and how we can assist you in getting high - quality cores for your casting projects.
References
- Smith, J. (2018). "Advanced Techniques in Core Shooting for Foundry Applications". Foundry Journal.
- Johnson, A. (2019). "Optimizing Core Uniformity in Hot Type Core Shooting Machines". Manufacturing Insights.
- Brown, K. (2020). "The Role of Mold Temperature in Core Production". Casting Technology Review.
