Vibration Table For Foundry

Vibration Table for Foundry: Enhancing Mold Compaction and Casting Quality

In foundry operations, proper mold compaction is critical for producing strong, defect-free castings. A vibration table, also known as a vibrating table or compaction table, plays a vital role in improving mold density and eliminating voids during the mold-making process. Whether used for green sand, resin sand, or investment casting molds, vibration tables help ensure that molds are compact, stable, and ready for pouring.

What Is a Vibration Table?

A vibration table for foundry is a mechanical platform that vibrates at controlled frequencies and amplitudes. It is used to compact molding sand around a pattern inside a flask or box. The vibrations cause sand particles to settle tightly around the pattern, increasing mold strength and dimensional accuracy.

 How It Works

Flask or Mold Placement
A mold box or flask is placed on the vibration table, typically filled with green or resin-coated sand.

Activation
Electric or pneumatic vibrators mounted under the table generate vertical or multidirectional vibration.

Sand Compaction
As the sand vibrates, air pockets are eliminated, and the sand becomes denser and more uniform around the pattern.

Mold Removal
After vibration, the flask is removed for further processing, such as core setting or pouring.

Key Features

Heavy-Duty Steel Frame
Designed to support high loads and resist vibration stress.

Adjustable Vibration Intensity
Frequency and amplitude can be tuned to match different sand types and mold sizes.

Customizable Table Sizes
Available in various dimensions to accommodate small cores or large flasks.

Control Panel
Integrated timers, speed controls, and start/stop buttons for safe operation.

Isolated Mounting
Equipped with rubber or spring dampers to minimize floor vibration and noise.

Vibration Table for Foundry

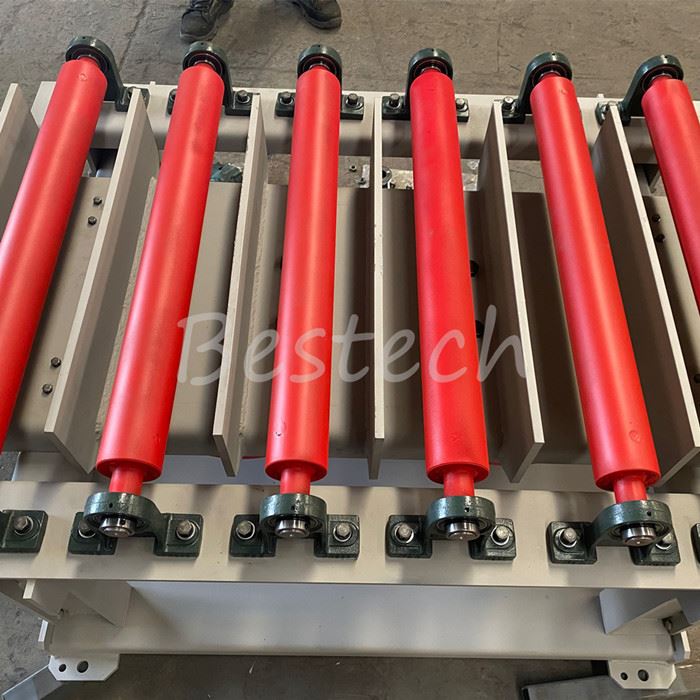

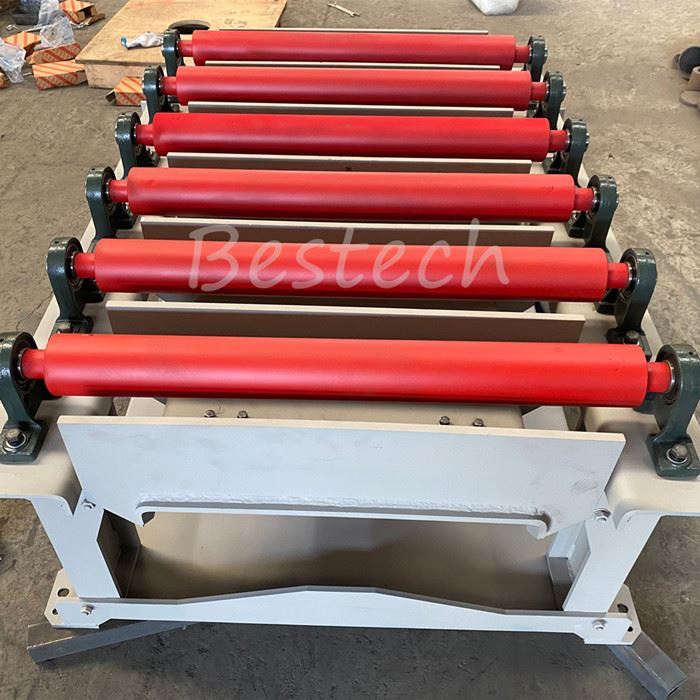

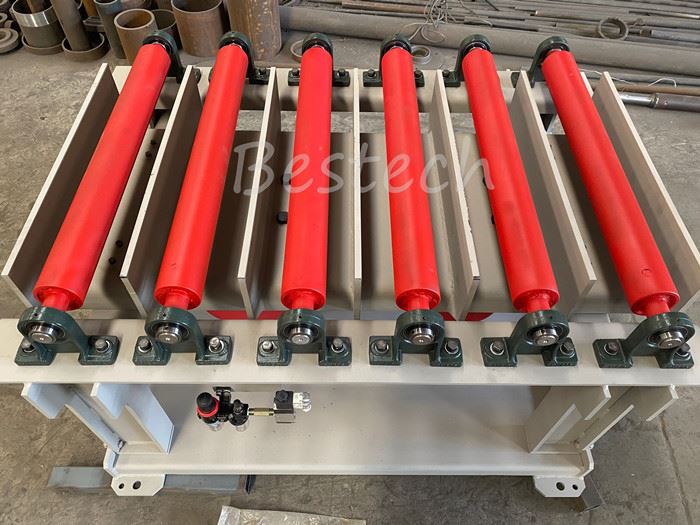

The vibration table for foundry mainly consists of a bracket, table vibration mechanism and shock absorption mechanism. At the same time, because it can do horizontal, vertical, up and down movements, it is named three vibration platform. This Series of vibration table for foundry is mainly used for the molding of resin sand and lost foam, and the sand is fully compacted and filled with the mold by the vibration motor with the vibration of the motive body.The vibration table can be combined with a roller conveyor to form a production line.

Compaction Vibration table for foundry is intended for the improvement of flow characteristics of molding sand prepared using cold-binder-bonded mixtures procedure.

Bestech Machinery offers standard or custom-made compaction tables intended for squeezing and shrinkage of molding sand prepared using cold-binder-bonded mixtures procedure.

Depending on application compaction tables may be completed with drive and idle rollers as well as frequency converters for vibrational shocks frequency and amplitude changing.

Vibration Table For Foundry Advantages:
Foundry molds quality improvement
High capacity
Operating reliability
Ease of maintenance
Elegant design
